Products : Vikram TMT Bars

Our Products

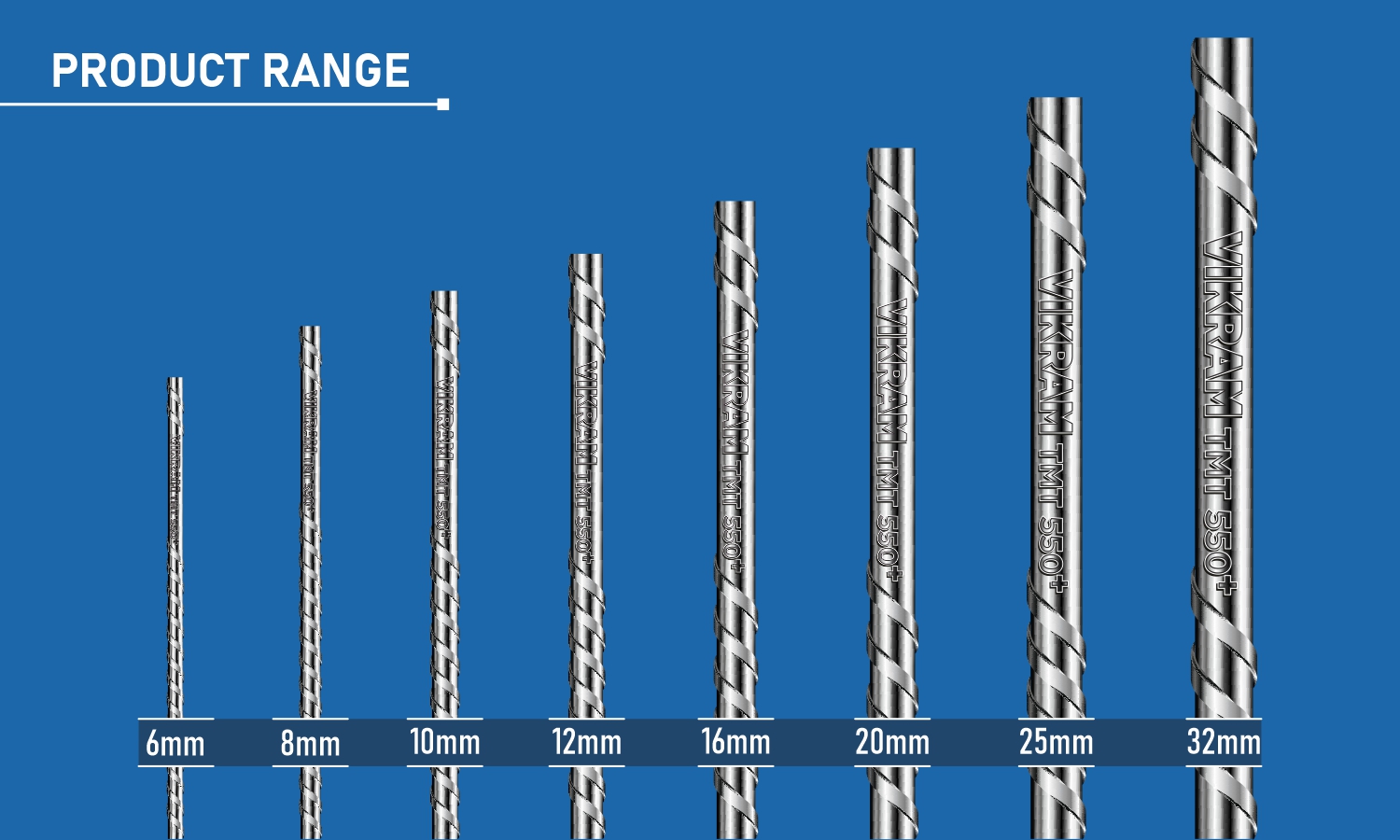

Vikram TMT 550+ Bars

VIKRAM TMT 550 WEIGHT CHART

BAR DIA IN MM	ISI STANDARD NOMINAL WEIGHT KG./MTR	TOLERANCE LIMIT AS PER BIS IN KG./MTR	VIKRAM TMT 550 TOLERANCE LIMIT AS PER KG./METER	NO. OF PIECES PER BUNDLES - 40 FT	WEIGHT PER BUNDLE KG - 40 FT
8	0.395	0.367-0.423	0.367-0.395	10	47.5
10	0.617	0.574-0.660	0.574-0.617	7	52
12	0.888	0.844-0.932	0.844-0.888	5	53
16	1.580	1.500-1.659	1.500-1.580	3	56
20	2.470	2.395-2.544	2.395-2.470	2	59
25	3.850	3.730-3.965	3.730-3.850	1	46
32	6.310	6.212-6.499	6.212-6.310	1	75

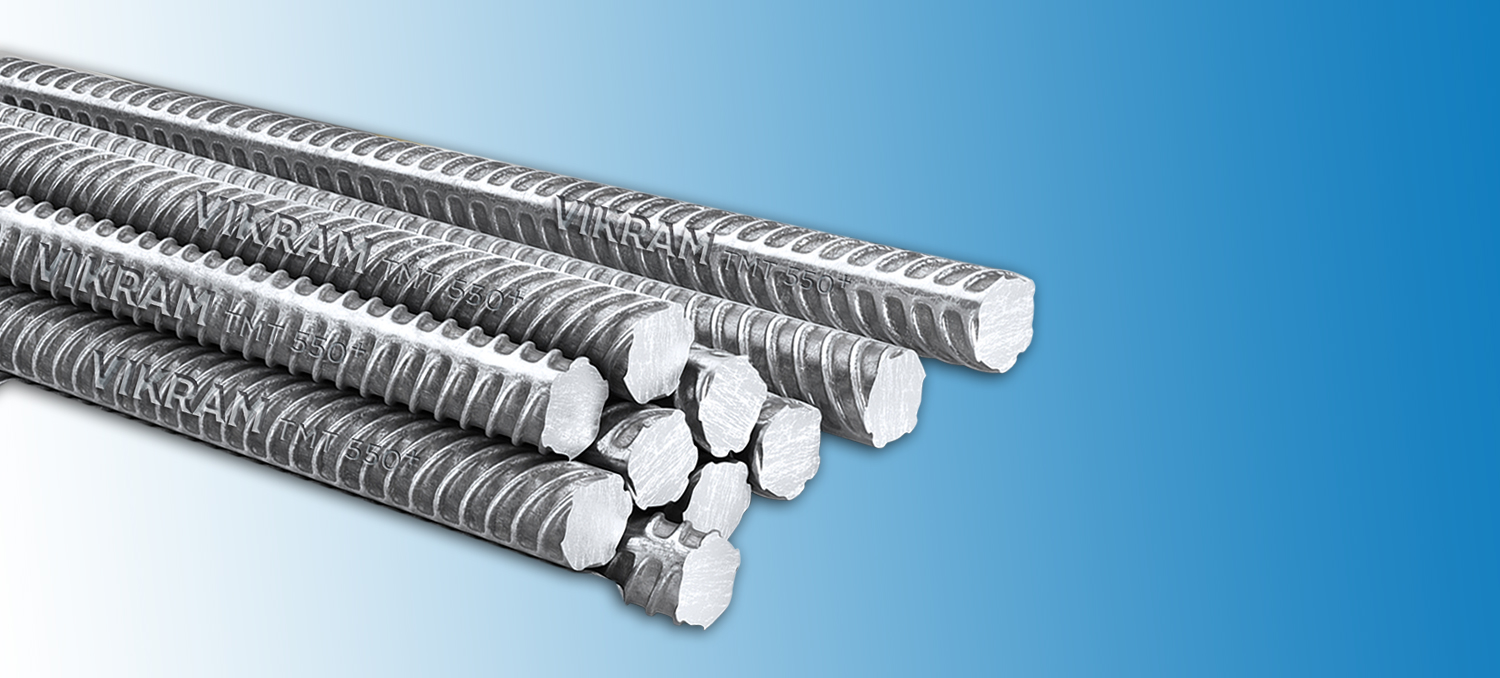

Vikram TMT Round Bars

ITEM	WEIGHT PER PIECE	WEIGHT PER MTR.	WEIGHT PER MTR. STD	NO. OF PIECES	WEIGHT PER BUNDLE
10MM	4.4	0.733	0.78	12	52.8
12MM	6.5	1.083	1.13	8	52

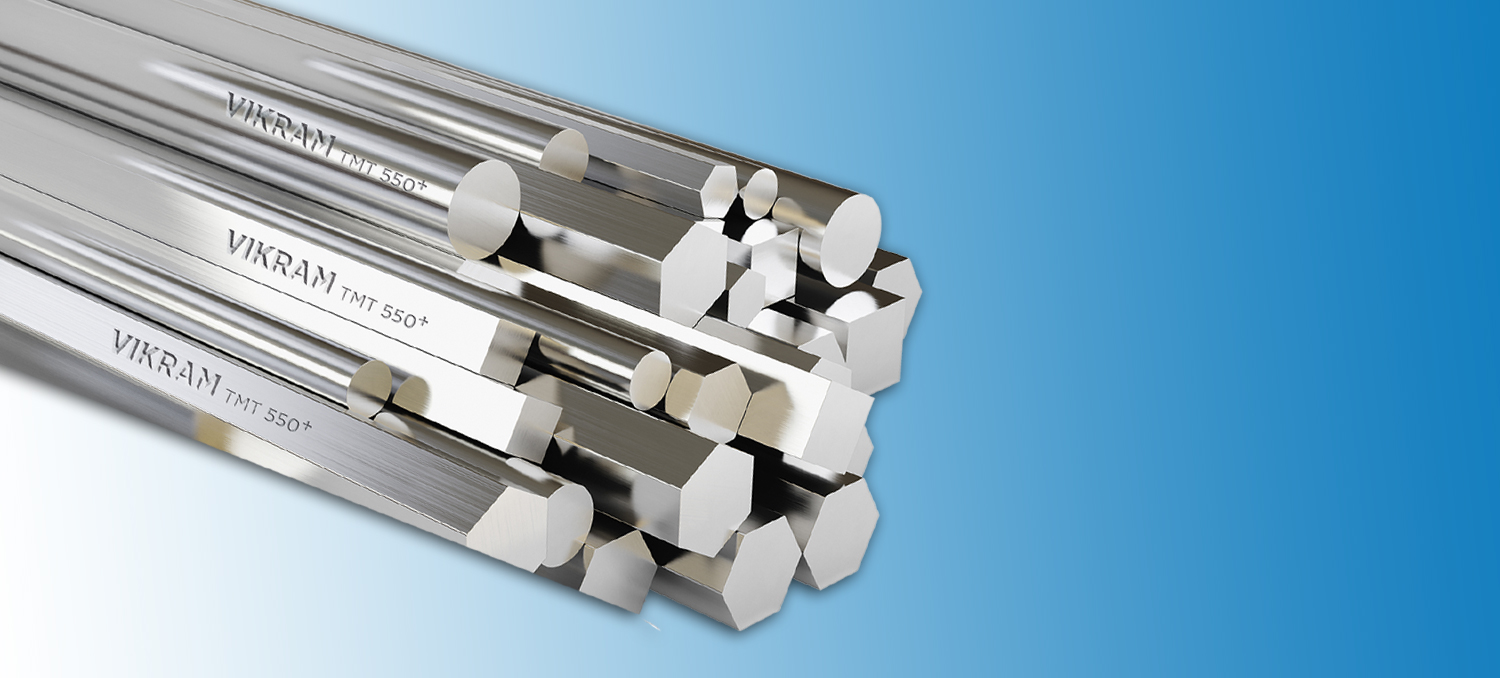

Vikram TMT Square Bars

ITEM	WEIGHT PER PIECE	WEIGHT PER MTR	WEIGHT PER MTR. STD	NO. OF PIECES	WEIGHT PER BUNDLE
10MM	3.6	0.6	0.62	15	54
12MM	5	0.833	0.89	10	50
16MM	9	1.5	1.58	6	54
20MM	9	1.5	1.58	6	54
25MM	22.5	3.75	3.85	2	54

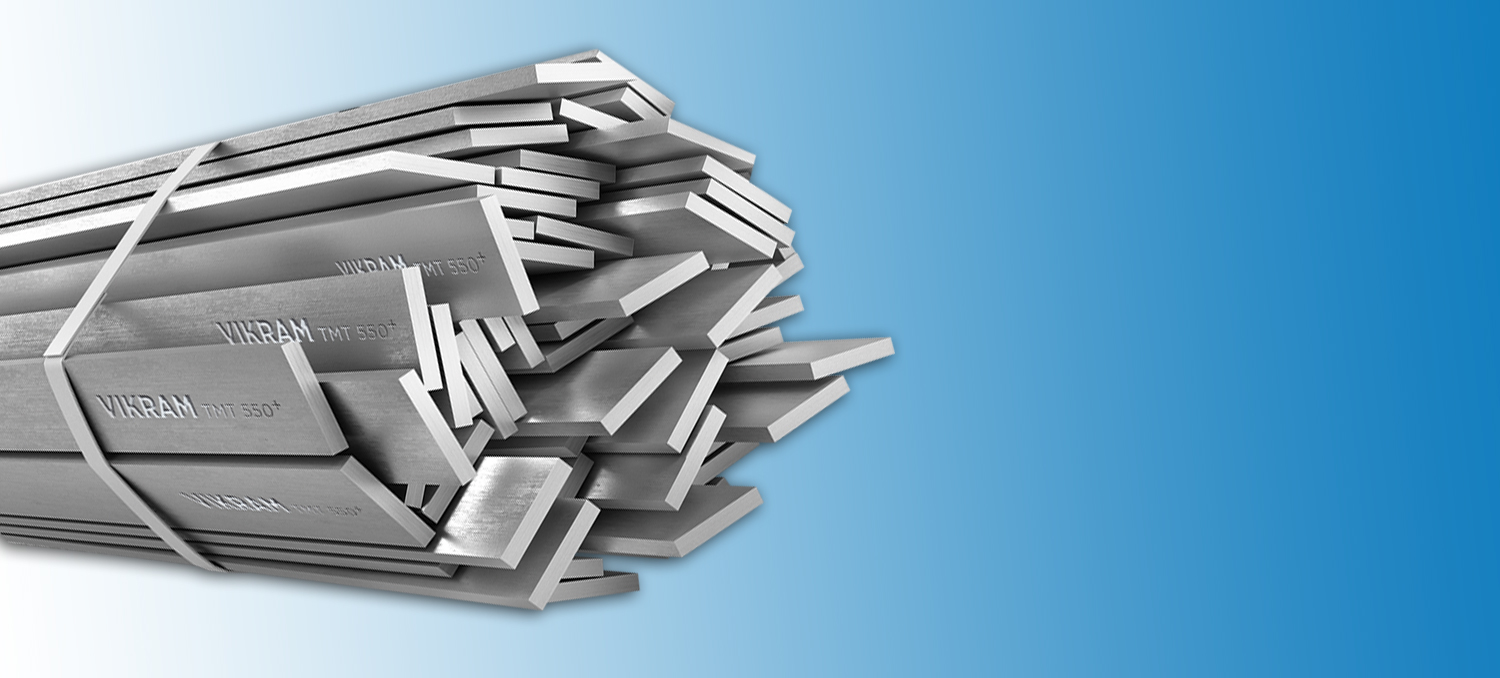

Vikram TMT Flats

ITEM	WEIGHT PER PIECE	WEIGHT PER MTR	WEIGHT PER MTR. STD	NO. OF PIECES	WEIGHT PER BUNDLE
25*5	5.5	0.916	1	10	55
32*6	8.66	1.45	1.5	6	52
40.6	11	1.833	1.9	5	55
50.6	13.7	2.3	2.36	4	55

MECHANICAL PROPERTIES

FE 550	Unit	YS N/mm	TS N/mm²	T.S/Y.S Min	Elongation %
	IS 1786	550	585	1.06	10
	+ VIKRAM TMT 550⁺	550	610	1.10	16

BEND PROPERTIES

		Maximum Mandrel Diameter
		Upto And incl. 20 mm	Over 20mm
+ VIKRAM TMT 550⁺	IS 1786 FE 550	5d	6d

RE-BEND PROPERTIES

		Maximum Mandrel Diameter
		Upto And incl. 10 mm	Over 10mm
+ VIKRAM TMT 550⁺	IS 1786 FE 550	5d	7d

CHEMICAL PROPERTIES

Unit	%C (Max)	%S (Max)	%P (Max)	%S + %P (Max)
IS 1786	0.30	0.055	0.050	0.100
+ VIKRAM TMT 550⁺	0.25	0.050	0.045	0.095

BILLETS

MS Billets are purchased from Indian’s top Billet Manufacturers. It has uniformly distributed carbides, higher mechanical proprieties, superior resistance to cracking and distortion, uniform shrinkage and higher flow ability, VIKRAM TMT 550+ purchased MS Billets are produced via the continues casting process adhering to international standards

PROCESS

Billets are manufactured through continuous casting technology in which liquid steel flows from furnace to caster through a copper mould. The water in the mould gets cooled and oscillates at a predetermined rate. The oscillation, cooling and pausing is done in such a controlled condition that the liquid steel solidifies into equated crystals. Every batch of billet manufactured is thoroughly checked to analyse the desired properties. TMT Re-bars produced from continuous casting billets show high tensile strength and elongation and there is remarkable consistency of properties.
